| Coad | 667021 | Type | Plane Dichroic Mirror | |
| Dimension(mm) | 6.5 x 5.0 x 1.5 | AOI(°) | 55.4 | |
| Diameter | 6.5mm x 5.0mm +0/-0.1mm | Thickness | 1.5mm +0/-0.1mm | |
| HR Wavelength (nm) | 532 + 561 | HT Wavelength (nm) | 1064 + 1122 | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | >80% | |
| Parallelism | <30 arcsec | Protective Chamfer | 0.1-0.2mm x 45° | |
| Surface Quality S1 | 20-10 S-D | Surface Quality S2 | 20-10 S-D | |
| Surface Flatness | <λ/8@633nm | Coating Type | IBS | |
| Reflectivity | >99.9% | Transmittance | >99.5% | |

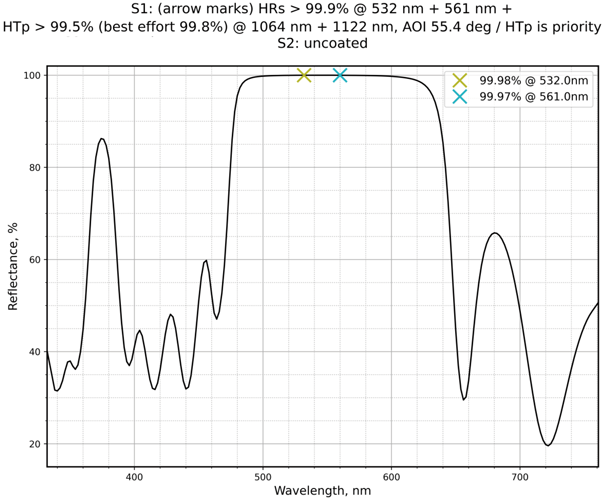

| Coating Parameter S1 | HRs>99.9%@532nm+561nm+HTp>99.5%(besteffort99.8%)@1064nm+1122nm | Coating Parameter S2 | Uncoated |
Traders City price 50.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
