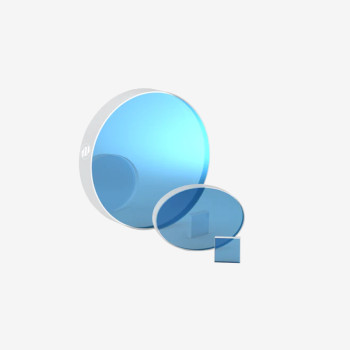

| Coad | 667017 | Type | Plane Dichroic Mirror | |
| Dimension(mm) | 25.4 x 3.0 | AOI(°) | 45 | |
| Diameter | 25.4mm +0/-0.1mm | Thickness | 3.0mm +0/-0.1mm | |
| HR Wavelength (nm) | 505 - 535 | HT Wavelength (nm) | 1000 - 1090 | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | >80% | |
| Parallelism | <3 arcmin | Protective Chamfer | 0.25mm x 45° | |
| Surface Quality S1 | 10-5 SD over CA (MIL-PRF-13830B) | Surface Quality S2 | 10-5 SD over CA (MIL-PRF-13830B) | |
| Surface Flatness | λ/8@632.8nm over CA | Coating Type | IBS | |
| Reflectivity | >99.5% | Transmittance | >98% | |
| Coating Parameter S1 | HR>99.5%@505-535nm+HT>98%@1000-1090nm | Coating Parameter S2 | AR<0.8%@1000-1090nm+SCCforimprovedS1flatness |
Traders City price 274.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
