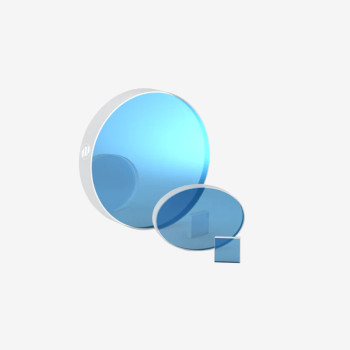

| Coad | 667011 | Type | Plane Dichroic Mirror | |
| Dimension(mm) | 25.4 x 6.35 | AOI(°) | 45 | |
| Diameter | 25.4mm +0/-0.1mm | Thickness | 6.35mm +0/-0.1mm | |
| HR Wavelength (nm) | 355 | HT Wavelength (nm) | 532 + 1064 | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | ≥20mm | |
| Parallelism | <10 arcsec | Protective Chamfer | 0.2-0.4mm x 45° | |
| Surface Quality S1 | 20-10 S-D MIL-PRF-13830B | Surface Quality S2 | 20-10 S-D MIL-PRF-13830B | |
| Surface Flatness | <λ/8@633nm over Dia15mm | Coating Type | IBS | |
| Reflectivity | >99.5% | Transmittance | >98% | |

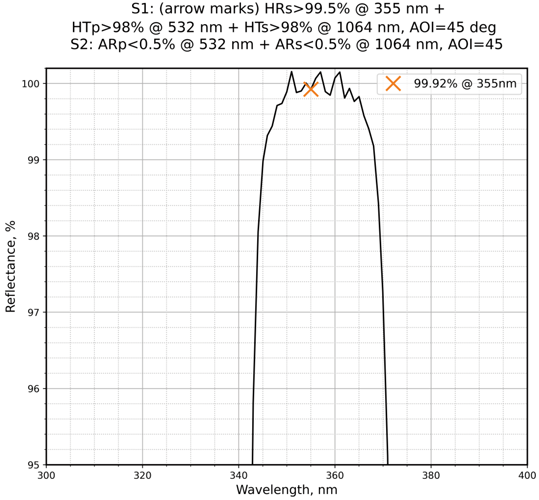

| Coating Parameter S1 | HRs>99.5%@355nm+HTp>98%@532nm+HTs>98%@1064nm | Coating Parameter S2 | ARp<0.5%@532nm+ARs<0.5%@1064nm |
Traders City price 259.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
