| Coad | 667010 | Type | Plane Dichroic Mirror | |
| Dimension(mm) | 25.4 x 4.0 | AOI(°) | 45 | |
| Diameter | 25.4mm +0/-0.1mm | Thickness | 4.0mm +0/-0.1mm | |
| HR Wavelength (nm) | 355 | HT Wavelength (nm) | 532 + 1064 | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | 23mm | |
| Parallelism | <3 arcmin | Protective Chamfer | 0.25mm x 45° | |
| Surface Quality S1 | 20-10 SD | Surface Quality S2 | 20-10 SD | |
| Surface Flatness | L/4@633nm over CA | Coating Type | IBS | |
| Reflectivity | >98% | Transmittance | >98% | |

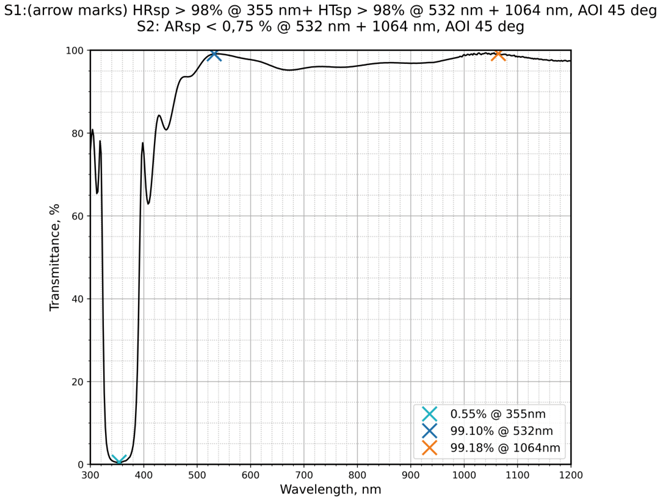

| Coating Parameter S1 | HRsp>98%@355nm+HTsp>98%@532nm+1064nm | Coating Parameter S2 | ARsp<0,75%@532nm+1064nm |
Traders City price 202.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
