| Coad | 667005 | Type | Plane Dichroic Mirror | |
| Dimension(mm) | 12.7 x 3.0 | AOI(°) | 45 | |
| Diameter | 12.7mm +0/-0.1mm | Thickness | 3.0mm +0/-0.1mm | |
| HR Wavelength (nm) | 342 - 347 | HT Wavelength (nm) | 515 + 1030 | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | >80% | |
| Parallelism | <10 arcsec | Protective Chamfer | 0.1-0.2mm x 45° | |
| Surface Quality S1 | 10-5 S-D MIL-PRF-13830B | Surface Quality S2 | 10-5 S-D MIL-PRF-13830B | |
| Surface Flatness | <λ/10@633nm | Coating Type | IBS | |
| Reflectivity | >99.9% | Transmittance | >99% | |

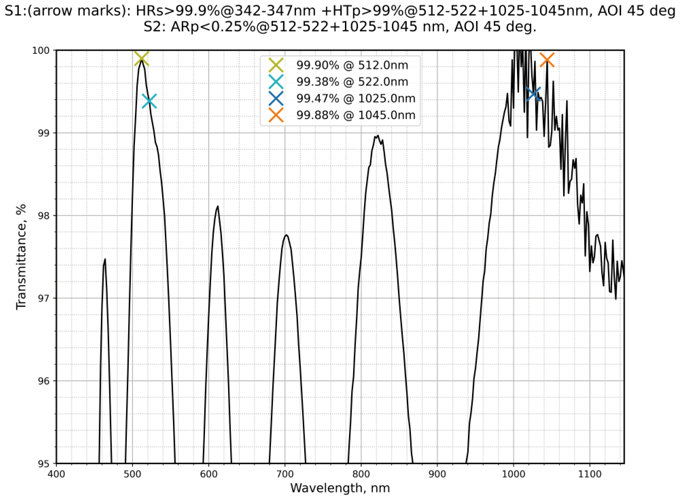

| Coating Parameter S1 | HRs>99.9%@342-347nm+HTp>99%@512-522+1025-1045nm | Coating Parameter S2 | ARp<0.25%@512-522+1025-1045nm |
Traders City price 324.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
