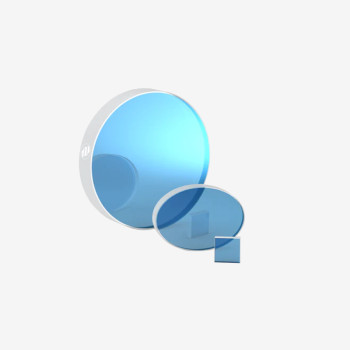

| Coad | 666995 | Type | Plane Dichroic Mirror | |
| Dimension(mm) | 12.7 x 6.0 | AOI(°) | 45 | |
| Diameter | 12.7mm +0/-0.1mm | Thickness | 6.0mm +0/-0.1mm | |
| HR Wavelength (nm) | 266 | HT Wavelength (nm) | 532 + 1064 | |
| Substrate | UVFS | Clear Aperture | ≥10mm | |
| Parallelism | <5 arcmin | Protective Chamfer | 0.2-0.3mm x 45° | |
| Surface Quality S1 | 20-10 S-D per CA (MIL-PRF-13830B) | Surface Quality S2 | 20-10 S-D per CA (MIL-PRF-13830B) | |
| Surface Flatness | λ/8@633nm over 6mm CA | Coating Type | IBS | |
| Reflectivity | >99.5% | Transmittance | >90% | |

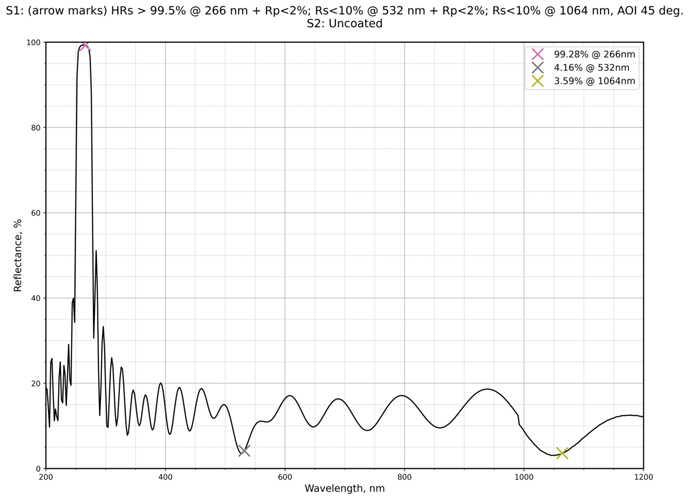

| Coating Parameter S1 | HRs>99.5%@266nm+Rp<2%,Rs<10%@532nm+Rp<2%,Rs<10%@1064nm | Coating Parameter S2 | Uncoated |
Traders City price 166.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
