| Coad | 666977 | Substrate | UVFS | |

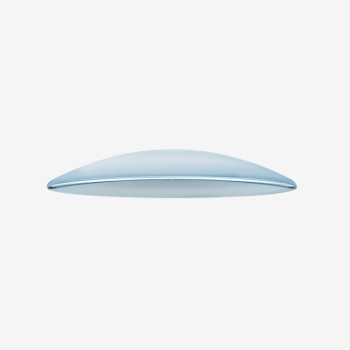

| Type | Plano-Convex Mirror | Clear Aperture | - | |
| Dimension(mm) | 25.4 x 9.0 | Parallelism | - | |
| Diameter | 25.4mm | Center Thickness | 9.0mm | |
| Edge Thickness | - | Surface Quality S1 | 10月5日 | |
| Wavelength(nm) | 750 - 850 | Surface Quality S2 | - | |
| Radius of Curvature(mm) | 750 | Surface Irregularity | λ/8 | |
| AOI(°) | 0 | Coating Type | Dielectric Coating | |
| Focal Length | 375mm | Coating Specifications | HR@750-850nm |
The Ion Beam Sputtering (IBS) coating, with its near-bulk ultra-high density, effectively suppresses optical absorption and significantly enhances reflectivity. This ensures outstanding performance and an exceptionally high laser-induced damage threshold (LIDT), even under demanding laser environments.We offer plano-convex mirrors with a variety of radii of curvature (ROC), allowing flexible selection of optimal optical parameters tailored to different laser system designs. This maximizes laser transmission efficiency and system stability. The mirror surface is smooth and uniform, capable of withstanding high-power laser irradiation. With a low thermal expansion coefficient, high mechanical strength, and stable performance, our mirrors ensure long-term reliable operation under high repetition rates and high energy density conditions.Whether for precision scientific instruments, industrial processing equipment, or nonlinear optics and ultrafast experimental platforms, our mirrors provide a solid optical guarantee for your laser system.
Disclaimer:ROC and focal length values not explicitly stated in the product specifications are calculated reference values based on the coating design wavelength, and are provided for selection guidance only.
Notes:For best performance, store and use the mirrors in an environment of 25 °C and relative humidity of 40%–60%. If contamination occurs on the mirror surface, gently wipe with >99% alcohol and lint-free optical tissue. Do not use rough fabrics, water, or abrasive cleaners, as these may damage the coating.
