| Coad | 666970 | Substrate | UVFS | |

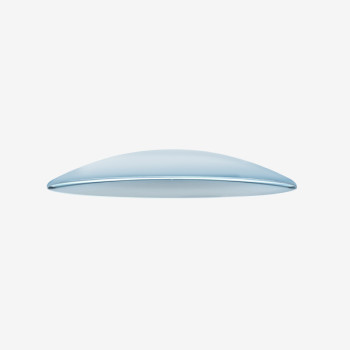

| Type | Plano-Convex Mirror | Clear Aperture | ≥20mm | |
| Dimension(mm) | 25.4 x 6.35 | Parallelism | <3 arcmin | |
| Diameter | 25.4mm +0/-0.1mm | Center Thickness | 6.35mm +0/-0.1mm | |
| Edge Thickness | 6.19mm | Surface Quality S1 | 40-20 (best effort 20-10) S-D as per MIL-PRF-13830B | |
| Wavelength(nm) | 1010 - 1050 | Surface Quality S2 | Polished | |
| Radius of Curvature(mm) | 1000 | Surface Irregularity | <λ/10@633nm per CA | |
| AOI(°) | 0 | Coating Type | IBS | |

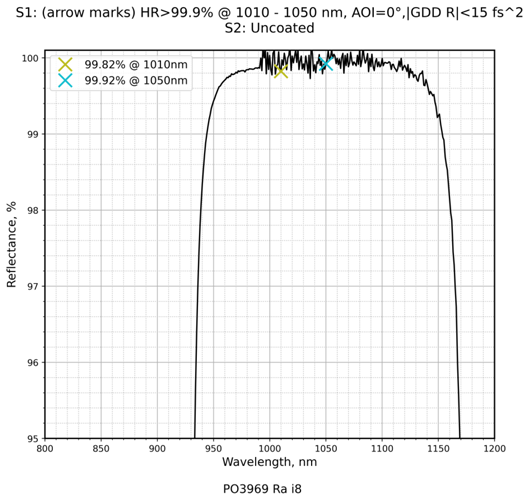

| Focal Length | 500mm | Coating Specifications | S1:HR>99.9%@1010-1050nm / S2:Uncoated |
Traders City price 274.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
