| Coad | 666966 | Substrate | UVFS Corning 7980 0F | |

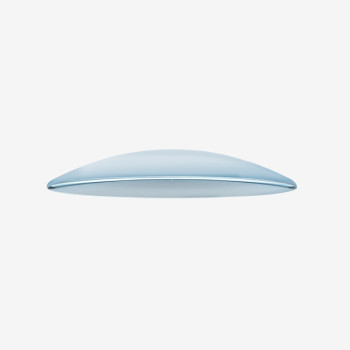

| Type | Plano-Convex Mirror | Clear Aperture | ≥20mm | |
| Dimension(mm) | 25.4 x 6.35 | Parallelism | <3 arcmin | |
| Diameter | 25.4mm +0/-0.1mm | Center Thickness | 6.35mm +0/-0.1mm | |
| Edge Thickness | 6.03mm | Surface Quality S1 | 20-10 S-D over CA (MIL-PRF-13830B) | |
| Wavelength(nm) | 515 | Surface Quality S2 | - | |
| Radius of Curvature(mm) | 250 | Surface Irregularity | λ/8@633mm over CA | |
| AOI(°) | 0 | Coating Type | IBS | |
| Focal Length | 125mm | Coating Specifications | S1:HR>99.9%@515nm / S2:Uncoated |
Traders City price 540.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
