| Code | 666953 | Type | Aluminum Profile Rails and Accessories | |
| Material | Black aluminum panels | Dimensions | 525mm × 375mm × 300mm (L × W × H) | |
| Included Tools | One each of 2.5mm, 3mm, 4mm, and 5mm hex wrenches | Shipping Form | Semi-assembled |
Material: Black aluminum panels Cover Type: Flip cover, easily openable and closable Mounting: Can be installed on a breadboard or optical platform

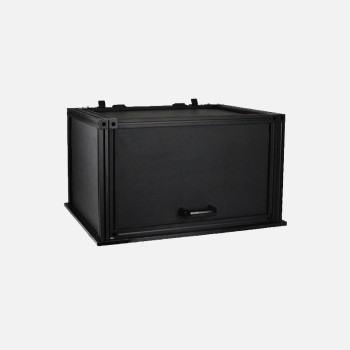

LBTEK’s Black Aluminum Enclosure is made of black aluminum panels and features a flip cover design, allowing full access for experimental operations and easy closure afterward. The enclosure size is 525 mm × 375 mm × 300 mm (L × W × H) and includes a side observation window; the window can be optionally sealed using the provided accessories. This size fits perfectly on the MBB-4560 breadboard (breadboard sold separately).
The enclosure is shipped in a semi-assembled form. The top cover’s aluminum frame and hinges are pre-assembled, while the vertical profiles and aluminum panels are not. During final assembly, place the enclosure upside down, align the four countersunk holes of the breadboard with the M6 threaded holes at the center of the aluminum profiles, and secure with screws. Alternatively, the enclosure can be mounted onto an optical platform using the AP25R1 right-angle bracket.
Note: Optical platform or breadboard must be purchased separately.
