| Coad | 666926 | Substrate | UVFS | |

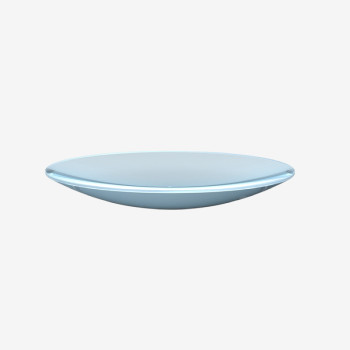

| Type | Plano-Concave Mirror | Clear Aperture | >85% | |
| Dimension(mm) | 50.8 x 9.0 | Parallelism | - | |
| Diameter | 50.8mm | Center Thickness | - | |
| Edge Thickness | 9.0mm | Surface Quality S1 | 20-10 S-D | |
| Wavelength(nm) | 980 - 1100 | Surface Quality S2 | - | |
| Radius of Curvature(mm) | -300 | Surface Irregularity | λ/10 PV@635nm | |
| AOI(°) | 0 | Coating Type | Dielectric Coating | |
| Focal Length | -150mm | Coating Specifications | HR>99.5%@980-1100nm |
Traders City price 171.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
