| Coad | 666896 | Substrate | UVFS JGS1 | |

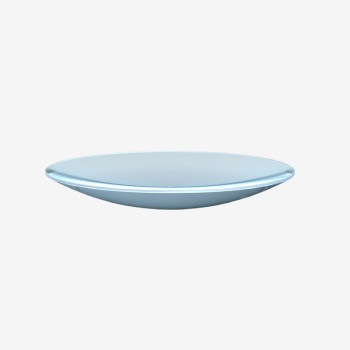

| Type | Plano-Concave Mirror | Clear Aperture | ≥10mm | |
| Dimension(mm) | 12.7 x 6.35 | Parallelism | <3 arcmin | |
| Diameter | 12.7mm +0/-0.1mm | Center Thickness | 6.33mm | |
| Edge Thickness | 6.35mm +0/-0.1mm | Surface Quality S1 | 20-10 S-D as per MIL-PRF-13830B | |
| Wavelength(nm) | 1064 + 671 | Surface Quality S2 | 20-10 S-D as per MIL-PRF-13830B | |
| Radius of Curvature(mm) | -1000 | Surface Irregularity | L/10@633nm per CA | |
| AOI(°) | 0 | Coating Type | IBS | |

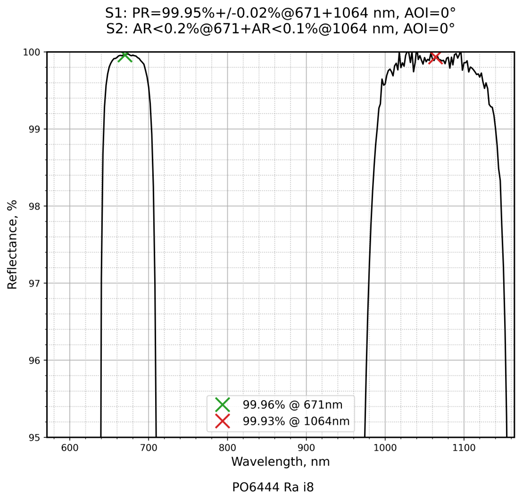

| Focal Length | -500mm | Coating Specifications | S1:PR=99.95%+/-0.02%@671+1064nm / S2:Uncoated |
Traders City price 439.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
