| Code | 666878 | Type | Precision 100 mm V-Groove Optical Rail with Accessories | |
| Parallelism | <0.05mm | Material | 6061‑T6 Aluminum Alloy | |
| Surface Finish | Black Anodized | Slider Platform Size | 88mm × 90mm | |
| Weight | 0.29kg |

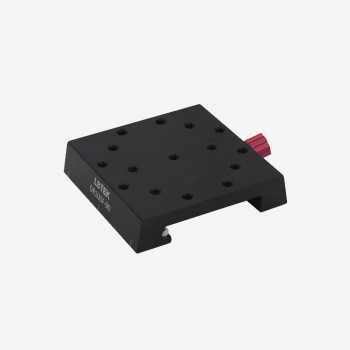

LBTEK Precision 100 mm V-Groove Optical Rail Slider
DR100F-25 and DR100F-90 are commonly used to mount opto-mechanical components directly onto precision 100 mm V-groove optical rails. The DR100F-12, with a width of 12 mm, is used with the slider for precise positioning. A spring-loaded thumb screw is used to fix the slider position. Wear-resistant POM balls provide support.
LBTEK Precision 100 mm V-Groove Optical Rail Slider is compatible with the DR100 series V-groove rails and comes with a spring-loaded thumb screw for fixing the slider position. The DR100F-25 and DR100F-90 platforms have M6 threaded holes for directly mounting opto-mechanical components onto the optical rail. The DR100F-12 platform has a width of 12 mm and can be used with the slider for precise positioning of opto-mechanical components. LBTEK provides custom services for other materials, sizes, and surface finishes. For customization, please contact technical support.
