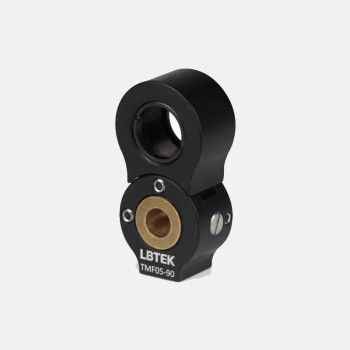

| Code | 666873 | Type | 90° Flip Mounting Base | |
| Material | 6061-T6 Aluminum | Surface Finish | Black Anodized | |
| Maximum Optical Component Thickness | 10mm | Compatible Optical Component Diameter | Ø12.7mm | |
| Flip Angle |
0°–90° |
Rod Compatibility | Ø6mm (for stacking), Ø12.7mm (for base mounting) | |
| Included Accessories |
1 × SM05 Retaining Ring |
Base Threaded Hole | M4 |
Traders City price 90.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Compatibility: Designed for Ø12.7 mm, Ø25.4 mm, or Ø50.8 mm optical components
Maximum Component Thickness: Ø12.7 mm and Ø25.4 mm ≤ 10 mm; Ø50.8 mm ≤ 12 mm
Stackable Design: Multiple flip mounts can be stacked and connected using Ø6 mm MOP series rods
Flexible Locking: Side M3 screws allow arbitrary angle fixing using a 1.3 mm hex wrench
Rod Mounting: Bottom M4 threaded hole enables direct mounting on optical rods
Included Accessories: 1 retaining ring
Pre-set Feature: Side flat-head spring brake screw is factory pre-set, no user adjustment required
Quick Installation: Easy to assemble and disassemble, supports optical rods for extended setups
