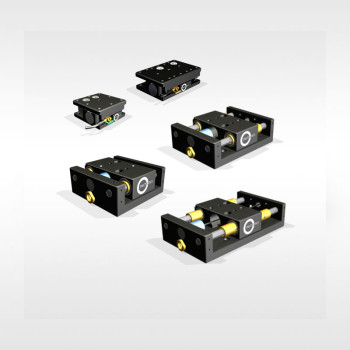

| Coad | 666862 | Type | Piezoelectric Linear Translation Stage | |
| Table Size(mm) | 30.0 x 40.0 | Travel（mm） | 18 | |
| Resolution（μm per microstep） | 0.01 | Motor Type | - | |
| Material | Aluminum Alloy | Motion Parallelism | - | |
| Motion Straightness | ±1.5μm | Drive Mechanism | - | |
| Guide Mechanism | Precision Ball Bearing Guide Rail | Unidirectional Positioning Accuracy | - | |
| Repeatability | - | Reset Positioning Accuracy | - | |
| Backlash | - | Vertical Load | 0.45 | |
| Horizontal Load | 3 | Speed | 1.5mm/s @LBCF30 | |
| Maximum Acceleration | - | Thread Specification | - | |
| Surface Treatment | - | Accessories Included | - | |
| Angle Range | ±80μrad (Pitch) / ±120μrad (Yaw) | Power Consumption | - | |
| Minimum Repeatable Motion Increment | - | Minimum Step Size | - | |
| Power Interface | 2-Pin MMCX Connector | Power Requirements | - | |
| Maximum Accuracy Percentage on Axis | - | Calibration Accuracy on Axis | - | |
| Speed Stability | - | Weight | 38g | |
| Driver Type | Piezoelectric Inertial Actuator | |||
Traders City price 2085.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
