| Code | 666851 | Type | Mounting Base | |
| Dimensions | 50mm × 75mm × 10mm | Material | 6061-T6 aluminum alloy | |
| Surface Finish | Black anodized | Slot Length | 32mm | |
| Number of Slots | 2 | Slot Spacing | 50mm | |
| Compatible Screw Size | M6 | Countersink Hole Spacing | 12.5mm | |
| Mounting Hole Type | Linear waist-shaped slot |
Material: 6061-T6 aluminum alloy
Compatible: Imperial / Metric systems
Included Hardware: 5 × M6 hex socket head cap screws

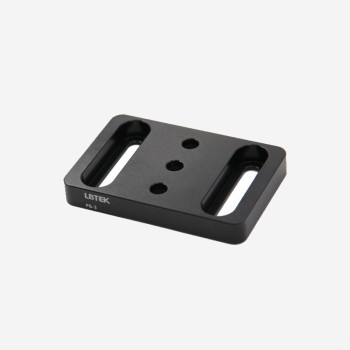

The LBTEK mounting base features a universal design compatible with both imperial and metric breadboards, posts, and post holders. M6 hex socket head cap screws pass through the countersunk mounting holes at the bottom to secure the base onto a post holder.
The dual-side waist-shaped countersunk slots are 32 mm long, suitable for installing two capped screws (imperial or metric), with a slot-to-slot spacing of 50 mm corresponding to metric breadboard hole spacing. When a screw is installed in only one slot, the base can be coarsely adjusted along the slot direction.
The center of the base includes three countersunk holes with 12.5 mm spacing for additional custom mounting.
