| Code | 666817 | Type | Stainless Steel Optical Post | |
| Parallelism | <0.05mm | Material | 303 Stainless Steel | |
| Surface Treatment | Passivation and Electromagnetic Demagnetization | Outer Diameter | Ø25mm | |
| Thread Specification | M12 | Top Thread Hole Specification | M6 | |
| Height Adjustment Range |
96mm - 136mm |
Adjustment Precision |
1.75mm/Turn |
Traders City price 59.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Outer Diameter: Ø25 mm
Height Adjustment Range: 96 mm - 136 mm
Top Thread Hole Specification: M6

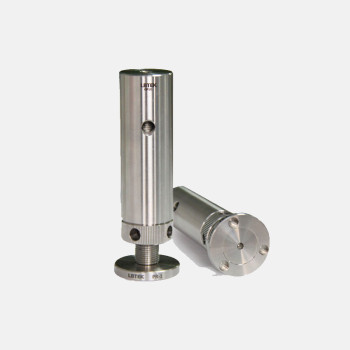

The LBTEK OP1D Adjustable Height Connector Rod has an outer diameter of Ø25 mm, with an M6 thread hole at the top. The support base and threaded rod are adhesively fixed, allowing the height to be adjusted between 96 mm and 136 mm. A knurled locking nut can be used to secure the height. Both the connector rod and the locking nut feature wrench holes for tightening or loosening with a 5 mm hex wrench or ball-end screwdriver. The base is equipped with a magnet for initial attachment to the optical platform, and can then be fixed in place using a fork block.
