| Code | 666810 | Type | Stainless Steel Optical Post | |
| Surface Treatment | Black Anodizing | Thread Specification | M6×1.0 | |
| Material | 7075-T6 Aluminum Alloy | Hex Size | 5mm | |
| Includes | 5mm Internal Hex Wrench (1 piece) | Quantity | 10 Pieces |
Material: 7075-T6 High-Strength Aluminum Alloy
Retractable Front-End POM Plunger
Front-End M6x1.0 Thread
Package: 10 Pieces, Includes Internal Hex Wrench
Thumb Knurled for Initial Tightening, 5 mm Hex for Final Tightening

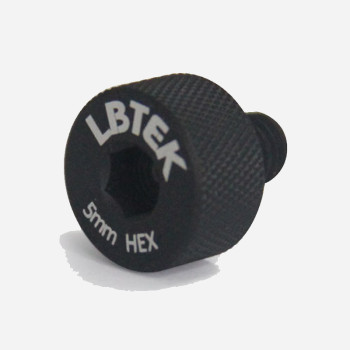

The LBTEK Spring-Type 5 mm Hex Thumb Screw is made from the highest strength 7075-T6 aluminum alloy, offering nearly twice the torsional strength of 6061-T6 aluminum. The retractable POM plunger at the front effectively prevents scratching of the connector rod. The knurled thumb screw allows for initial tightening, making it easy to adjust and position. Once the desired position is determined, it can be further tightened using a 5 mm hex wrench (Note: Excessive torque may cause the locking screw to break, so it is recommended to use an L-shaped hex wrench and gently tighten by holding the short end. The recommended maximum torque is 3.2 N·m).
