| Code | 666808 | Type | Stainless Steel Optical Post | |
| Thickness | 8.6mm | Material | 6061-T6 Aluminum Alloy | |
| Surface Treatment | Black Anodizing | Clamping Diameter | Ø12.7mm | |
| Adjustable Height | 8.75mm | Fixing Method | M4 Screw |
Traders City price 299.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Adjustment Precision: 0.25 mm/Turn
Locking Slide-in Sleeve Design, Used to Connect Ø12.7 mm Connector Rod
M5×0.25 Hex Adjuster is Replaceable

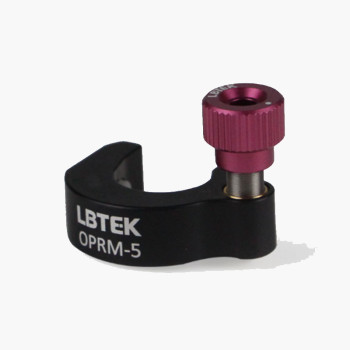

The LBTEK OPRM-5 Adjustable Positioner is used for precise positioning of the axial height of the connector rod. This positioner includes a fine M5×0.25 hex adjuster, which can be fine-tuned using a 2 mm hex wrench. If a longer or shorter travel range is needed, any other M5×0.25 hex adjuster can be used as a replacement. The image on the right shows the adjustable positioner mounted on the outer diameter of the Ø12.7 mm connector rod to move the connector rod. It can be secured using M4 set screws located on the side.
