| Code | 666807 | Type | Stainless Steel Optical Post | |
| Thickness | 10mm | Material | 6061-T6 Aluminum Alloy | |
| Surface Treatment | Black Anodizing | Clamping Diameter | Ø12.7mm | |
| Fixing Method | M4 Screw |
Traders City price 28.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Used as an intermediate interface for moving components
Equipped with five wear-resistant contact pads for component positioning
Locking slide-in sleeve design, connects to Ø12.7 mm connector rod

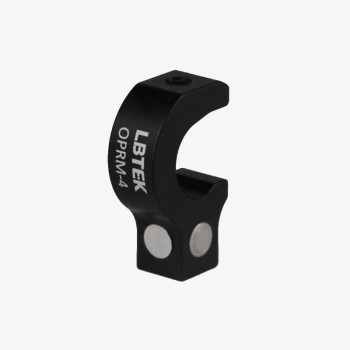

When optical components and their mounting bases require a plane during translation or rotation, the OPRM-4 Contact Block can serve as an intermediate interface. Additionally, it can support the connector rod to maintain its height. The top, bottom, and sides of the contact block feature five contact pads, making it simple and flexible to use. The OPRM-4 is mounted on the outer diameter of the Ø12.7 mm connector rod and can be secured using the M4 set screws located on the side.
