| Code | 666804 | Type | Stainless Steel Optical Post | |
| Material | 6061-T6 Aluminum Alloy | Surface Treatment | Black Anodizing | |
| Clamping Diameter | Ø12.7mm | Positioning Method | Steel Ball and V-Groove | |
| Fixing Method | M4 Screw |
Material: 6061-T6 Aluminum Alloy
Suitable for Fixed Height and Rotational Orientation of Ø12.7 mm Connector Rod
Steel Ball and V-Groove Design Provide Repeatable Positioning with an Angle of Less than 0.5°

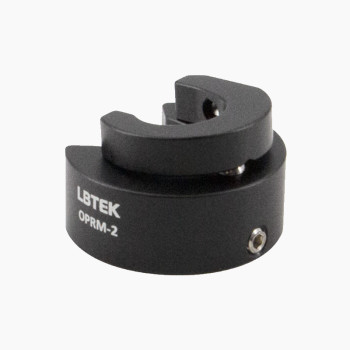

The LBTEK Ø12.7 mm Connector Rod Orientation Sleeve Assembly is designed to maintain the height and rotational orientation of the connector rod. It consists of two parts: a connector rod bracket sleeve fixed to the connector rod bracket and a connector rod sleeve (OPRM-3). For optimal performance, the thumb screws on the connector rod bracket should be tightened against the connector rod bracket sleeve. The screws should be positioned in the corresponding location (as shown in the diagram). When adjusting the rotation of the connector rod bracket sleeve, the thumb screws on the bracket must bear a certain load to ensure that the connector rod and the bracket make dual-line contact. Both the connector rod bracket sleeve and the connector rod sleeve are secured with M4 screws.
