| Code | 666797 | Type | Stainless Steel Optical Post | |
| Material | 6061-T6 Aluminum Alloy | Surface Treatment | Black Anodizing | |
| Distance Between Two Center Holes | 12.7mm | Clamping Hole Perpendicularity | <0.03mm | |
| Applicable Connector Rod Diameter | Ø12.7mm to Ø6mm | Thumb Screws | M6 Knurled Internal Hexagon / 2 pieces | |
| Clamp Angle | 90° |
Material: 6061-T6 Aluminum Alloy
Compatible with Ø12.7 mm Connector Rod
Clamp Angle: 90°

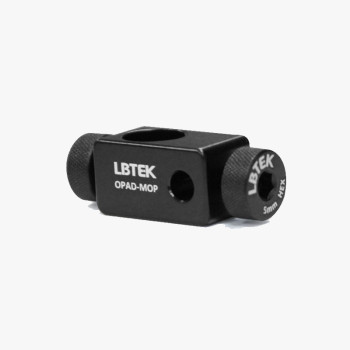

The LBTEK Ø12.7 mm to Ø6 mm Connector Rod 90° Angle Clamp is designed for angle connection between Ø12.7 mm and Ø6 mm connector rods, with an adjustable angle of 90°. The center distance between the two holes is 12.7 mm, and the perpendicularity of the clamping hole is within 0.03 µm. Each side features a thumb screw with a POM (polyoxymethylene) head to prevent scratching the connector rod during tightening. All thumb screws can be reinforced with a 5 mm hex wrench for secure clamping (Note: Excessive torque may cause POM deformation or damage. It is recommended to use an L-shaped hex wrench and gently tighten by holding the short end of the wrench).
