| Code | 666796 | Type | Stainless Steel Optical Post | |
| Material | 6061-T6 Aluminum Alloy | Surface Treatment | Black Anodizing | |
| Distance Between Two Center Holes | 20mm | Clamping Hole Perpendicularity | <0.03mm | |
| Applicable Connector Rod Diameter | Ø12.7mm | Thumb Screws | M6 Knurled Internal Hexagon / 2 pieces | |
| Clamp Angle | 90°/180° |
Material: 6061-T6 Aluminum Alloy
Compatible with Ø12.7 mm Connector Rod
Clamp Angle: 90°/180°

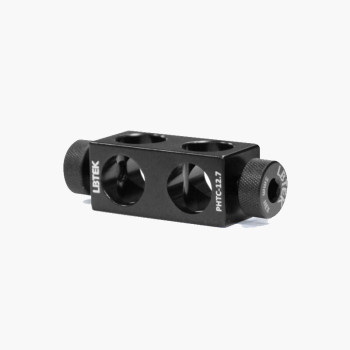

The LBTEK Ø12.7 mm Connector Rod Bi-Directional Angle Clamp is designed for angular connection of Ø12.7 mm connector rods, with adjustable angles of 90°/180°. The distance between the two center holes is 20 mm, and the perpendicularity of the clamping hole is within 0.03 mm. The thumb screw features a retractable ball head made of polyoxymethylene to avoid scratching the connector rod. All thumb screws can be reinforced with a 5 mm hex wrench for secure clamping (Note: Excessive torque may cause the screws to break, so it is recommended to use an L-shaped hex wrench and gently tighten by holding the short end of the wrench).
