| Code | 666795 | Type | Stainless Steel Optical Post | |
| Material | 6061-T6 Aluminum Alloy | Surface Treatment | Black Anodizing | |
| Distance Between Two Center Holes | 33mm | Dimensions | Ø30mm * 80mm | |
| Rotating Graduations | Yes | Applicable Connector Rod Diameter | Ø12.7mm | |
| Thumb Screws | M6 Knurled Internal Hexagon / 3 pieces | Graduation Accuracy | 2° | |
| Clamp Angle | 0° ~ 360° |
Material: 6061-T6 Aluminum Alloy
Compatible with Ø12.7 mm Connector Rod
Clamp Angle: 360°

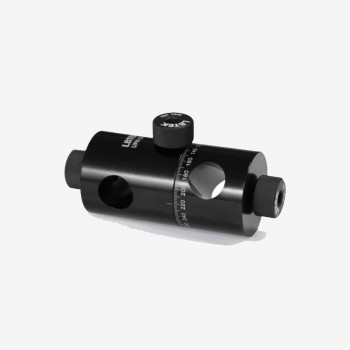

The LBTEK Ø12.7 mm Universal Angle Clamp is designed for two Ø12.7 mm connector rods, allowing the angle between the rods to rotate 360°. The graduation accuracy is 2°, with angle numbers marked every 20°. Side thumb screws are used to lock the rotational angle, while top and bottom thumb screws are used to secure the connector rods. The thumb screws feature a retractable ball head made of polyoxymethylene to avoid scratching the connector rods. All thumb screws can be reinforced with a 5 mm hex wrench for secure clamping (Note: Excessive torque may cause the screws to break, so it is recommended to use an L-shaped hex wrench and gently tighten by holding the short end of the wrench).
