| Code | 666771 | Type | Spatial Filtering System Mechanical Assembly | |
| Material | 6061-T6 Aluminum Alloy, 304 Stainless Steel | Compatible Optic Diameter | 25.4mm | |
| Structural Design | Compatible with 30mm Cage System |
Generates a Standard Fundamental Gaussian Beam with Optical Components and Precision Pinholes
Compatible with 30 mm Cage System and Free-Space Optical Paths
Includes Optical Mounts and Adjustment Tools

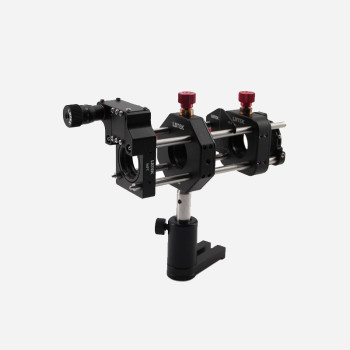

The spatial filter is ideal for generating a fundamental Gaussian beam with a standard spatial profile. At the input side, the Z-axis translation mount MFT holds the focusing lens, which focuses the beam through a precision pinhole mounted on the translation stage TXY1S. At the output side, the 1-inch optic mount TXY1 allows precise centering of the collimating optic.
The system also includes one CT-1 alignment plate for the 30 mm cage system, and one CSD20 adjustable iris for controlling the output beam spot. A detailed list of included components can be found under the Component List tab, while device selection and calculation guidelines are available under the Technical Notes tab.
Note: Optical components and precision pinholes are not included and can be purchased separately from the LBTEK store.
