| Code | 666769 | Type | Standard Optical Post Holder Assembly | |
| Material | 6061-T6 | Surface Finish | Black Anodized | |
| Compatible Optic Diameter | Ø25.4mm | Minimum Optic Thickness | 3mm | |
| Countersunk Hole Specification / Quantity | M4 / 2pcs | Threaded Locking Method | Radial Locking | |
| Mirror Rotation Range | 360° Continuous | Adjuster Specification / Quantity | M6 / 3pcs | |
| Maximum Linear Travel in Z-axis | 6.5mm |
Traders City price 138.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Compatible Optic Size Ø25.4 mm, minimum thickness 3 mm
45° Mount Stability Mirror remains secure during continuous 360° rotation
Rotation Scale Engraved markings at 5° intervals
Adjustable Angle ±4°
Accessories Included Two Ø2 × 6 mm dowel pins and one M4 × 10 mounting screw
Available Versions Two-axis standard mount / Three-axis lockable mount

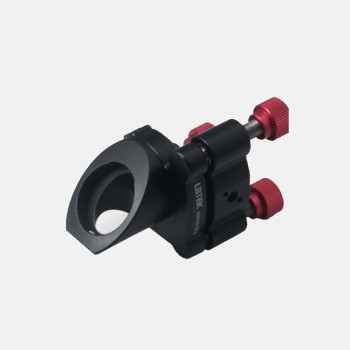

The 45° mirror mount provides pitch, yaw, and rotational control. It supports 360° continuous rotation as well as ±4° pitch and yaw adjustments, with an adjustment resolution of 0.4°/turn. The three-axis lockable version additionally offers 6.5 mm translation along the Z-axis. This mount is designed to hold Ø25.4 mm optics with a minimum thickness of 3 mm.
