| Code | 666682 | Type | Universal Power / Energy Meter | |
| Interface type | BNC / E connector / USB | Dimensions (L × W × H) | 220.0 × 190.0 × 57.0mm | |
| Display Type | 7-inch touchscreen | Power supply | 5 V / 2.5 A |
Adapted for thermopile detectors and pyroelectric detectors
7-inch touchscreen with backlight
Supports analog output and digital display

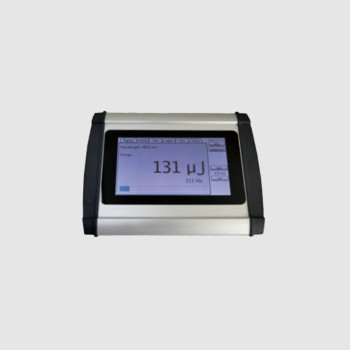

The LBPEM710 meter is compatible with thermopile detectors and pyroelectric detectors, enabling measurement of continuous laser power or pulsed laser energy. Its user interface features a high-resolution graphical display and a capacitive touchscreen. The 7-inch display is backlit, and the capacitive touch buttons allow quick access to settings such as source wavelength or spectral range. In the simple operation mode, power and energy readings can be viewed via analog output or digital display. The device also supports data logging and saving to its internal memory. Users can connect the device to a PC via USB to modify or copy saved files. The LBPEM710 meter is compatible with pyroelectric laser energy meters and operates over a wavelength range of 190 nm to 25 μm.
