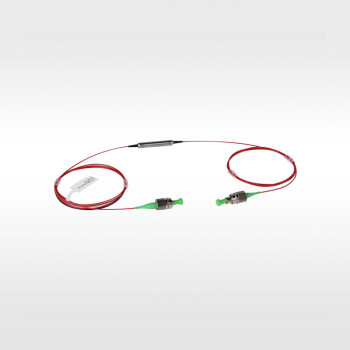

| Coad | 666636 | Type | Fiber Polarizer | |
| Wavelength(nm) | 1550 | Connector Type | FC/UPC 2.0mm | |
| Fiber Model | Corning SMF-28e / Corning PM1550 | Fiber Length（m） | 1 | |
| Central Wavelength | 1550nm | Bandwidth | ±50nm | |
| Operating Temperature | -5 - 70℃ | Storage Temperature | -40 - 70℃ | |
| Operating Mode | - | Splitting Ratio | - | |
| Extinction Ratio | Type 30 dB Min 28 dB | Insertion Loss | ≤0.6dB | |
| Return Loss | ≥50dB | Excess Loss | - | |
| Polarization-Dependent Loss | - | Polarization Mode Dispersion | - | |
| Directionality | - | Package Size | 5.5 x 35.0mm | |
| Uniformity | - | Isolation | - | |
| Maximum Optical Power | 300 mW (with connector) | Maximum Tension | 5N | |
| Minimum Crosstalk | - | Rotation Angle | - | |
| Port Configuration | - | |||
Traders City price 184.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
