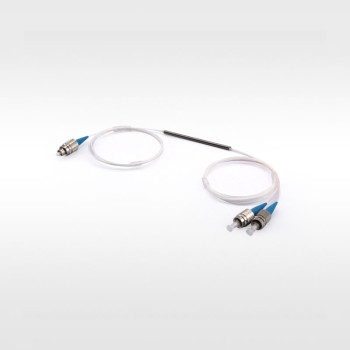

| Coad | 666591 | Type | 1x2 Single-Mode Fiber Coupler | |
| Wavelength(nm) | 635 | Connector Type | FC/UPC | |
| Fiber Model | 630-HP 900µm Loose Hytrel® Tube | Fiber Length（m） | 1 | |
| Central Wavelength | - | Bandwidth | ±10nm | |
| Operating Temperature | -40 - 85℃ | Storage Temperature | -40 - 85℃ | |
| Operating Mode | - | Splitting Ratio | 50:50 | |
| Extinction Ratio | - | Insertion Loss | ≤3.9dB（Port1）≤3.9dB（Port2） | |
| Return Loss | ≥55dB | Excess Loss | ≤0.5dB | |
| Polarization-Dependent Loss | ≤0.2dB | Polarization Mode Dispersion | - | |
| Directionality | - | Package Size | 3.0 x 60.0mm | |
| Uniformity | ≤1.0dB | Isolation | - | |
| Maximum Optical Power | 100mW(with connector 50mW) | Maximum Tension | 5N | |
| Minimum Crosstalk | - | Rotation Angle | - | |
| Port Configuration | 1 x 2 | |||
Traders City price 172.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
