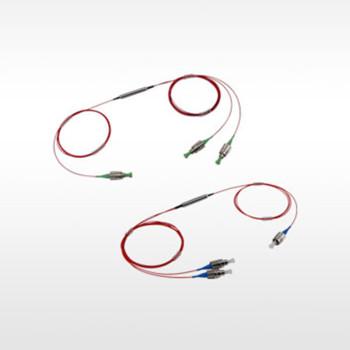

| Coad | 666536 | Type | PM Dual-Wavelength Mux | |
| Wavelength(nm) | 980 / 1550（R/T） | Connector Type | FC/APC | |
| Fiber Model | SM98-PS-U25D，900 µm Loose Hytrel® Tube | Fiber Length（m） | 0.8 | |
| Central Wavelength | - | Bandwidth | ±15nm | |
| Operating Temperature | -40 - 70°C | Storage Temperature | -40 - 85°C | |
| Operating Mode | - | Splitting Ratio | - | |
| Extinction Ratio | ≤20dB | Insertion Loss | ≤0.6dB（980nm）≤0.6dB（1550nm） | |
| Return Loss | ≥60dB | Excess Loss | - | |
| Polarization-Dependent Loss | - | Polarization Mode Dispersion | - | |
| Directionality | ≥55dB | Package Size | 5.5 x 35.0mm | |
| Uniformity | - | Isolation | ≥20dB（980nm）≥20dB（1550nm） | |
| Maximum Optical Power | 1W(with connector) | Maximum Tension | 5N | |
| Minimum Crosstalk | - | Rotation Angle | - | |
| Port Configuration | - | |||
Traders City price 253.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
