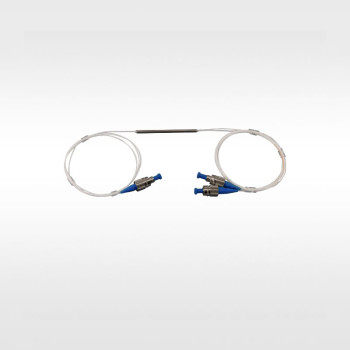

| Coad | 666518 | Type | Single-Mode Dual-Wavelength Mux | |
| Wavelength(nm) | 488 / 633（R/T） | Connector Type | FC/APC | |
| Fiber Model | 460 HP，900 µm Loose Hytrel® Tube | Fiber Length（m） | 1 | |
| Central Wavelength | - | Bandwidth | ±5nm | |
| Operating Temperature | -40 - 85°C | Storage Temperature | -40 - 85°C | |
| Operating Mode | - | Splitting Ratio | - | |
| Extinction Ratio | - | Insertion Loss | ≤0.5dB（488nm）≤0.5dB（633nm） | |
| Return Loss | ≥60dB | Excess Loss | - | |
| Polarization-Dependent Loss | ≤0.2dB | Polarization Mode Dispersion | - | |
| Directionality | ≥55dB | Package Size | 3.0 x 60.0mm | |
| Uniformity | - | Isolation | ≥15dB（488nm）≥15dB（633nm） | |
| Maximum Optical Power | 50mW(with connector) | Maximum Tension | 5N | |
| Minimum Crosstalk | - | Rotation Angle | - | |
| Port Configuration | - | |||
Traders City price 366.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
