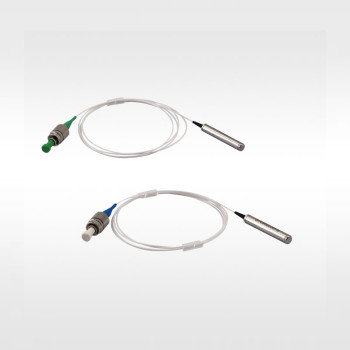

| Coad | 666391 | Type | Single-Mode Fiber Faraday Mirror | |
| Wavelength(nm) | 1310 | Connector Type | FC/UPC | |
| Fiber Model | SMF-28e, 900 µm Loose Hytrel® Tube | Fiber Length（m） | 1 | |
| Central Wavelength | - | Bandwidth | ±15nm | |
| Operating Temperature | -5 - 70°C | Storage Temperature | -40 - 85°C | |
| Operating Mode | - | Splitting Ratio | - | |
| Extinction Ratio | - | Insertion Loss | ≤0.7dB | |
| Return Loss | - | Excess Loss | - | |
| Polarization-Dependent Loss | ≤0.1dB | Polarization Mode Dispersion | - | |
| Directionality | - | Package Size | 5.5 x 35.0mm | |
| Uniformity | - | Isolation | - | |
| Maximum Optical Power | 300mW | Maximum Tension | 5N | |
| Minimum Crosstalk | - | Rotation Angle | 90 ± 1 ° | |
| Port Configuration | - | |||
Traders City price 98.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
