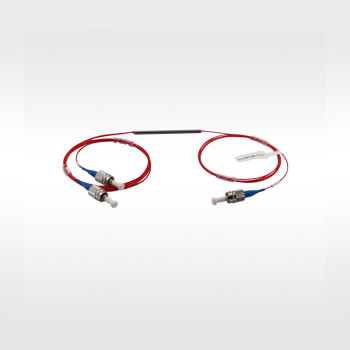

| Coad | 666362 | Type | 1x2 Polarization-Maintaining Fiber Coupler | |
| Wavelength(nm) | 2000 | Connector Type | FC/UPC | |
| Fiber Model | PM1950 900 µm Loose Hytrel® Tube | Fiber Length（m） | 1 | |
| Central Wavelength | - | Bandwidth | ±20nm | |
| Operating Temperature | -40 - 85°C | Storage Temperature | -40 - 85°C | |
| Operating Mode | - | Splitting Ratio | 25:75 | |
| Extinction Ratio | ≥20dB | Insertion Loss | ≤1.8dB（Port1）≤7.0dB（Port2） | |
| Return Loss | ≥50dB | Excess Loss | - | |
| Polarization-Dependent Loss | - | Polarization Mode Dispersion | - | |
| Directionality | - | Package Size | 3.0 x 60.0mm | |
| Uniformity | - | Isolation | - | |
| Maximum Optical Power | 500mW | Maximum Tension | 5N | |
| Minimum Crosstalk | - | Rotation Angle | - | |
| Port Configuration | 1 x 2 | |||
Traders City price 512.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
