| Code | 666279 | Type | Five-Axis Fiber Coupler Mounting Base and Wall Plate | |
| Main Material | 6061-T6 Aluminum Alloy | Surface Finish | Black Anodizing | |
| Center Hole Specification | C-Mount Internal Thread | Compatible Laser Type | LGK Series HeNe Lasers with Ø45 mm Outer Diameter | |
| Mounting Hole Specification / Quantity | M3 Thread / 4 |
Mounted to the laser via four M3 threaded holes or set screws
Central through-hole with C-Mount series thread
Includes M3 and M2 screws

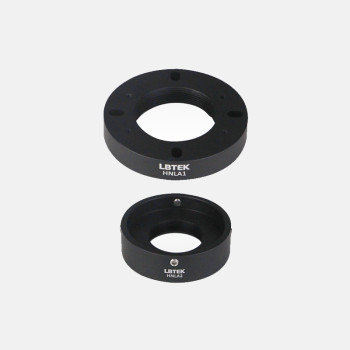

The LBTEK HeNe Laser Adapter allows a five-axis fiber coupler to be mounted directly to the front panel of LGK series HeNe lasers and HNL-2-RP HeNe lasers. The HNLA1 adapter features four M2 threaded holes and four M3 slotted holes, and comes with the required M2 and M3 screws. It can be mounted to the HeNe laser body using M3 screws, while the M2 screws secure the five-axis fiber coupler.
The HNLA2 adapter features four M2 threaded holes and four M4 threaded holes on the side, and mounts to the HNL-2-RP HeNe laser via four included side set screws, with the M2 screws securing the five-axis fiber coupler. The adapter’s center also has a C-Mount series thread, allowing compatibility with certain laser mounting setups.
