| Code | 666276 | Type | Five-Axis Fiber Coupler Mounting Base and Wall Plate | |
| Main Material | 6061-T6 Aluminum Alloy | Surface Finish | Black Anodizing | |
| Compatible Coaxial System Size | 30 mm Coaxial | Mounting Method | Quick-Release |
Mounts five-axis fiber coupler accessories to a 30 mm coaxial system
Quick-release flexure mechanism
Bottom with M4 through-threaded hole for mounting to OP-XX series posts

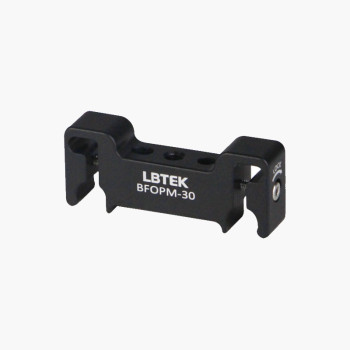

The LBTEK 30 mm Coaxial System Adapter (BFOPM-30) is designed for integrating our five-axis fiber coupler accessory series into 30 mm cage systems. It features two dowel pin holes for securing optical element mounts from our fiber coupling accessories, which can be locked in place using a 1.5 mm hex key. The mount includes two snap-in flexure clamps for attaching our Ø6 mm cage rods, also lockable with a 1.5 mm hex key. The coaxial holes have a snap-in design, allowing components to be inserted and removed easily without disassembling the entire coaxial system. When used within a coaxial system, and when the coaxial system is connected to the coupler system via the FP-OPM30 coaxial plate, all optical components share the same beam height of 14.3 mm. An M4 threaded hole on the bottom of the BFOPM-30 mount allows attachment to an OP-XX series post.
Note: This cage system mount is not compatible with fiber coupler accessories that have a width greater than 19 mm in the direction perpendicular to the optical axis.
