| Code | 666270 | Type | Five-Axis Fiber Coupler Mounting Base and Wall Plate | |
| Dimensions | 42mm × 38mm × 6.5mm | Material | 303 Stainless Steel | |
| Surface Finish | Sandblasting + Passivation | Countersunk Hole Specification | M4 | |
| Weight | 0.05kg | Included Accessories | M4×10 Socket Head Cap Screws / 2, M2×6 Socket Head Cap Screws / 4, SM1R Retaining Ring / 1 | |
| Coaxial System Compatible | No | Thread Specifications | SM1 / M2 |
Traders City price 54.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Material: 303 Stainless Steel
Surface Finish: Sandblasting + Passivation
Includes one SM1R retaining ring
M2 threaded holes for mounting fiber couplers

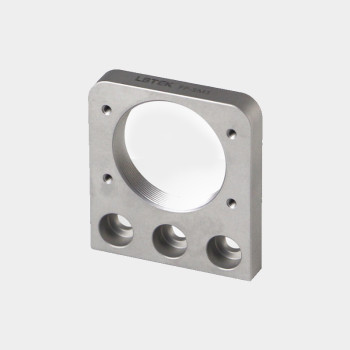

The LBTEK Fiber Coupler Mounting Wall Plate can be attached to the side of a fiber coupler mounting base using the two included M4 screws. Four M2 threaded holes allow direct threaded connection with fiber couplers, and an SM1 internal thread is provided for compatibility with our Ø25.4 mm lens tubes and other SM1-threaded components. Purchase includes one SM1 retaining ring.
