| Coad | 666241 | Type | Single-mode Fiber Optic Isolator | |
| Wavelength(nm) | 780 | Bandwidth (nm) | ±10 | |
| Connector Type | FC/APC | Fiber Model | 780-HP 900um loose tube | |
| Operating Temperature | 10 - 50℃ | Storage Temperature | 0 - 60℃ | |
| Fiber Length | 1m | Insertion Loss | ≤1.2dB | |
| Return Loss | ≥50dB | Polarization-Dependent Loss | ≤0.25dB | |
| Maximum Optical Power | 2W (without connector), 0.3W (with connector) | Maximum Tension | 5N | |
| Isolation | 28dB | Operating Mode | - | |
| Extinction Ratio | - | |||

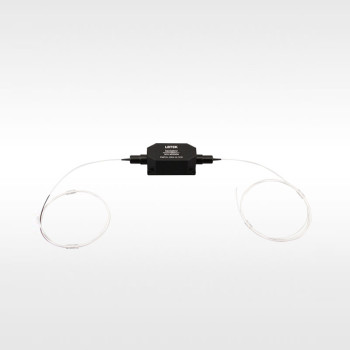

The LBTEK single-mode fiber optic isolator primarily utilizes the Faraday effect of magneto-optic crystals to isolate reflected light, allowing light to only travel in one direction. It is a passive magneto-optic device. Fiber optic isolators are used to prevent the light source from being affected by backward reflection or signals. Backward reflection can damage lasers or cause mode hopping, amplitude variations, or frequency shifts. In high-power applications, backward reflection can also cause instability and power spikes. LBTEK linear fiber optic isolators feature high isolation, low insertion loss, and high power handling. They are widely used in fiber lasers, fiber amplifiers, laser communications, fiber sensing, and scientific research fields. LBTEK offers customization services, including isolators with different wavelengths, power ratings, and fiber types. For specific customization requirements, please contact us.
LBTEK single-mode fiber optic isolators are available with a variety of center wavelengths from 780 nm to 2000 nm and can handle up to 10 W of power. Products with center wavelengths of 840 nm and 960 nm have an ultra-wide bandwidth of 100 nm, making them suitable for SLD (Superluminescent Diode) applications. Each isolator undergoes strict testing and comes with a test report to ensure product performance. The input end of the sleeve is marked with a black marker for easy identification, and the incident direction is also marked on the casing. LBTEK single-mode fiber optic isolators provide customization options for parameters such as center wavelength, bandwidth, power, and fiber type.
