| Code | 666212 | Type | Shielding Plane Joining Plate | |
| Dimensions | 138.0 × 35.0mm | Material | 5052-H32 | |
| Measurement Range | ≤135mm | Surface Treatment | Black Anodizing | |
| Clear Aperture | Ø2.0mm / Ø1.0mm |
Scale Line Spacing: 1.0 mm and 1/16 inch
Compatible with Optical Platforms and Breadboards
Base Magnets Provide Adhesion Force

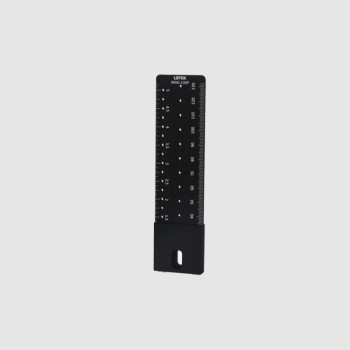

The LBTEK Magnetic Beam Height Gauge MHG-130P has a maximum measurement height of 135 mm. Both sides feature scale lines with graduations of 1.0 mm and 1/16 inch, designed for beam height measurement. Alongside the metric and imperial scales, there are columns of Ø1.0 mm, Ø2.0 mm, and Ø2.0 mm holes located on the centerline and beside the scale, with hole spacings of 5.0 mm, 1/4 inch, and 10.0 mm, respectively. These holes allow for quick adjustments to the optical path height and enable passage of laser beams. Each gauge has a magnet at the bottom, which can adhere to the surface of optical platforms. The bottom also includes a pair of Ø5.0 mm positioning pins, which can be inserted into the 25.0 mm hole spacing of optical platforms or breadboards.
