| Code | 666211 | Type | Shielding Plane Joining Plate | |
| Dimensions | 310.0 × 40.0mm | Material | 5052-H32 | |
| Measurement Range | ≤305mm | Surface Treatment | Black Anodizing | |
| Clear Aperture | Ø2.0mm |
Scale Line Spacing: 1.0 mm and 1/16 inch
Hole Spacing: 25.0 mm and 1 inch
Base Magnets Provide Adhesion Force

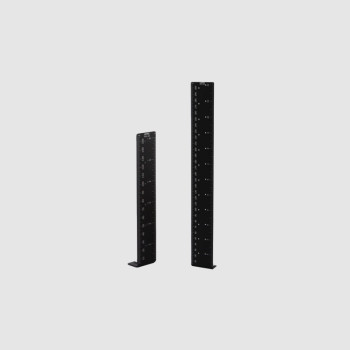

The LBTEK Magnetic Beam Height Gauge MHG-150 and MHG-300 have maximum measurement heights of 155 mm and 305 mm, respectively. The front features scale lines with graduations of 1.0 mm and 1/16 inch, designed for beam height measurement. Next to the scale, there are columns of Ø2.0 mm holes, with hole spacing of 25.0 mm and 1 inch, enabling quick adjustments to the optical path height. Each gauge has a magnet at the bottom that can adhere to the surface of optical platforms. The entire surface is treated with sandblasting and black anodization, which can also be used to block stray light beams, creating a uniform scattering surface.
