| Code | 666209 | Type | Shielding Plane Joining Plate | |
| Dimensions | 150.0 × 150.0 × 2.8mm | Dimensional Tolerance | ±0.15mm | |
| Material | White Polystyrene |
Dimensions: 75.0×75.0×2.8 mm, 150.0×150.0×2.8 mm
Bottom with M4 Threaded Hole, Extendable with Optical Rod
Includes One Crosshair Sticker

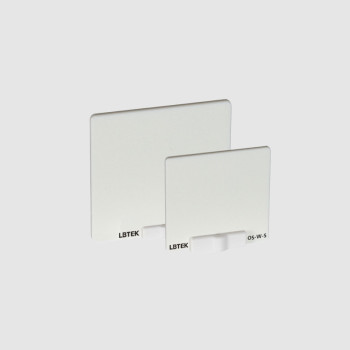

The LBTEK Observation White Screen is available in two sizes: 75.0×75.0×2.8 mm and 150.0×150.0×2.8 mm. The front features a matte finish, while the back has a micro-reflection of 8%. These matte surfaces provide uniform diffuse reflection, presenting interference patterns and other images in the best possible way. The white polystyrene material of the observation screen facilitates the observation of bright images and beams, with light even able to pass through and reach the back of the screen. Each observation screen includes a crosshair sticker for beam alignment. The bottom of the screen has M4 threaded holes for attaching optical rods, making it easy to integrate the observation white screen into optical mechanical setups.
Note: This observation screen should not be used as a light block or laser safety device. Its plastic construction gives it a low damage threshold and slight transparency.
