| Code | 666203 | Type | Laser Collection Tube | |
| Cooling Method | Water Cooling + Air Cooling | Operating Wavelength | 100nm - 3μm | |
| Maximum Input Power | 150W | Light Absorption Position Structure | Conical | |
| Dimensions |
111.5 × 60.0 × 60.0mm |
Bottom Thread Specifications | M4 M6 | |
| Material |
6061-T6 Aluminum Alloy |
Laser Damage Threshold |
CW：500 W/cm2 Plused：25 J/cm2（±5°） |
|
| Input Hole Thread Type | SM05 Internal Thread | Weight | 0.396kg |
SM05 Internal Thread Input Hole
Compatible with 30 mm Coaxial System
Equipped with M4 Threaded Mounting Hole

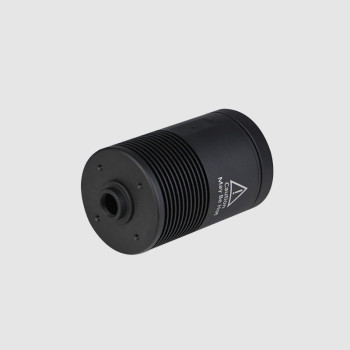

The LBT1 Laser Collection Tube provided by LBTEK uses natural air cooling and is suitable for wavelengths ranging from 200 nm to 3 μm, designed for continuous light with a maximum power of 50 W. The M4 threaded mounting hole at the bottom can be used to install Ø12.7 mm stainless steel optical rods. The LBT2L-M Water-Cooled Laser Collection Tube employs both natural air cooling and water cooling. It is suitable for wavelengths ranging from 100 nm to 3 μm. When paired with a water chiller or water cooling system, it can handle continuous or pulsed light with a maximum power of 150 W under 1 L/min water flow at 25 °C. It features M4 and M6 threaded mounting holes on either side for installing Ø12.7 mm and Ø25 mm stainless steel optical rods. Both models include SM05 internal thread input holes. The input holes are surrounded by four M3 threaded holes, which can be used to install LBTEK Ø6 mm coaxial system mounting rods, compatible with a 30 mm coaxial system. Additionally, the LBT2L-M water-cooled laser collection tube comes with quick-connect water pipe fittings, compatible with Ø6 mm outer diameter water pipes.
