| Code | 666201 | Type | Laser Safety Shield | |
| Dimensions | 305.0 × 75.0mm | Graduation Resolution | Edge 5 mm, Center 1 mm | |
| Bottom Magnet Specifications / Quantity | Ø15.0 × 2.5 mm, Two Pieces | Countersunk Hole Specifications | Compatible with M6 Inner Hexagonal Cylindrical Head Screws |
Height Graduation Resolution: Edge 5 mm, Center 1 mm
Two Ø15×2.5 mm Bottom Magnets
Compatible with M6 Inner Hexagonal Cylindrical Head Screws
Includes Lift Handle

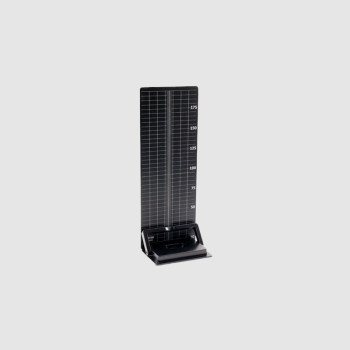

The LSSM1 has dimensions of 200 mm×75 mm, and the LSSM2 has dimensions of 305 mm×75 mm. Both sides feature height graduations with an edge graduation resolution of 5 mm and a center graduation resolution of 1 mm. These shields are used to determine the laser spot height position. The bottom of the shield contains two Ø15×2.5 mm magnets, along with an M6 countersunk hole, allowing for fixation using M6 inner hexagonal cylindrical head screws. They can be mounted on a non-magnetic platform. The entire surface undergoes sandblasting and black anodizing treatment, which is used to block stray, unnecessary beams, creating a uniform scattering surface. Additionally, the base includes a retractable handle for easy lifting of the shield from the magnetic platform.
