| Coad | 666114 | Type | Fixed Fiber Collimator | |
| Wavelength(nm) | 1550 | Focal Length(mm) | 10.10 | |
| Output Spot Diameter (mm) | 2.00 | Divergence Angle (°) | <0.075 | |
| NAlens | 0.37 | Material | N-BK7 | |
| Deflection Angle | <0.25° | Coating Specifications | Rabs<0.25%a@1550nm,AOI=6°(S1) | |
| Wavelength Range | 1100 - 1650nm | Housing Material | Non-magnetic Stainless Steel | |
| Shell Diameter | 11.0mm | Shell Length | - | |
| Thread Specification | M11 x 0.5 | Connector Type | FC/APC |

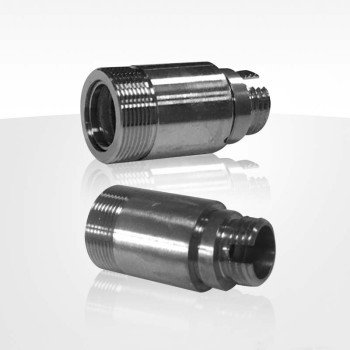

LBTEK Fixed Fiber Collimator is a commonly used passive optical component in fiber optic signal transmission. It can convert the divergent light from the fiber output into collimated light (parallel light) via an internal achromatic cemented lens. The LBTEK Fixed Fiber Collimator comes with two fiber connector options: FC/PC and FC/APC, and is used in conjunction with single-mode fiber jumpers. It is available in various wavelength options from 405 nm to 1690 nm, with a housing thread size of M11×0.5. Additionally, the collimator is individually aligned and calibrated at its designated wavelength to ensure excellent collimation performance within the antireflection coating wavelength range.
Please note that due to its fixed design, this fiber collimator is not recommended for fiber coupling applications. LBTEK also offers a variety of customization services, including custom sizes, design wavelengths, and output spot diameters. For specific customization requirements, please contact us.
The LBTEK Fixed Fiber Collimator (FC/PC Connector) is compatible with FC/PC connector-type fibers, as shown in the image. It can be paired with the LBTEK Collimator Mounting Kit (TAD-11) and fixed to the 30 mm Coaxial Mounting Plate (OPM-12.5AS). Additionally, the LBTEK Fiber Flanges SM1E-FPC and SM1-FPC can be selected for SM1 internal and external thread installations and integrated into a 30 mm coaxial system.
