| Code | 666090 | Type | Precision Pinhole | |
| Enclosure Material | 6061-T6 Aluminum Alloy | Enclosure Diameter | Ø25.4mm | |
| Enclosure Thickness | 4.1mm | Enclosure Surface Treatment | Black Anodized | |
| Pinhole Diameter | Ø5μm ± 1μm | Pinhole Metal Sheet Material | Copper | |
| Pinhole Metal Sheet Thickness | 25μm |
Traders City price 150.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Enclosure Material
6061-T6 Aluminum Alloy
Pinhole Metal Sheet Material
Copper
High-Energy Pinhole
Gold-plated front, blackened back

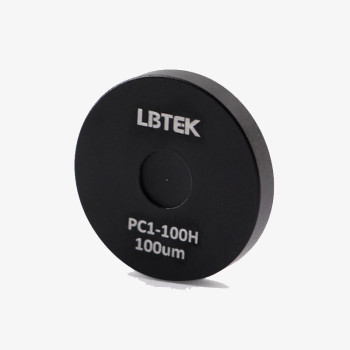

LBTEK offers copper high-energy precision pinholes with a pinhole diameter range of Ø5 to Ø100 μm. The copper sheet is gold-plated on the front and blackened on the back, installed in a Ø25.4 mm aluminum alloy enclosure, and can be easily mounted in a Ø25.4 mm mount.
Note: The metal sheet of the pinhole is relatively thin, and slight deformation may occur at the edges of the metal sheet in some products. However, this does not affect the functionality and use of the pinhole.
