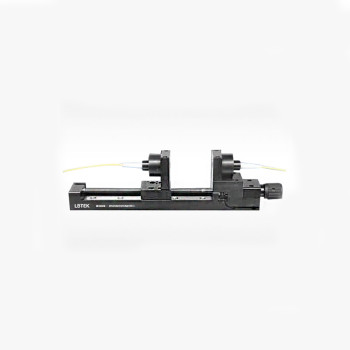

| Code | 666080 | Type | Fiber Delay Line | |
| Operating Wavelength | 1550nm | Return Loss | ≥ 60dB | |
| Insertion Loss | ≤ 1.0dB | Travel Range | 25×2=50mm | |
| Rail Resolution | 635μm/turn | Delay Range | 167ps | |
| Delay Resolution | 2ps/turn | Fiber Length | 1m | |
| Connector Type | FC/APC | Core Diameter | 9μm | |
| Cladding Diameter | 125μm | Maximum Optical Power | 500mW | |
| Operating Temperature | 10 ~ +60 ℃ | Dimensions (L×W×H) | 102 × 51 × 25mm |
Traders City price 966.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Structure: (2+1)×1
Signal Wavelength: 1040–1080 nm
Pump Wavelength: 800–1000 nm
High-power package, maximum optical power per arm: 50 W
The LBTEK High-Power Package (2+1)×1 Pump and Signal Combiner is designed for 50 W power systems, featuring high power tolerance and efficient heat dissipation to ensure stable operation under high-power conditions. It offers excellent performance including low insertion loss, high pump efficiency, and stability. Each device undergoes comprehensive parameter testing before shipment and comes with a test report to guarantee performance.
