| Coad | 665954 | Type | Motorized Linear Translation Stage | |
| Table Size(mm) | 90.0 x 90.0 | Travel（mm） | 20 | |
| Resolution（μm per microstep） | 0.5 | Motor Type | Five-Phase Stepper Motor | |
| Material | 6061-T6 Aluminum Alloy | Motion Parallelism | 30μm | |
| Motion Straightness | 5μm | Drive Mechanism | Ball Screw | |
| Guide Mechanism | Cross Roller Guide | Unidirectional Positioning Accuracy | 10μm | |
| Repeatability | ±0.5μm | Reset Positioning Accuracy | - | |
| Backlash | 1μm | Vertical Load | - | |
| Horizontal Load | - | Speed | 5mm/s | |
| Maximum Acceleration | - | Thread Specification | Spacing: 25mm, M6 Threaded Hole | |
| Surface Treatment | Black Anodizing | Accessories Included | 4 M6 Flat Head Hexagon Socket Screws | |
| Angle Range | - | Power Consumption | - | |
| Minimum Repeatable Motion Increment | - | Minimum Step Size | - | |
| Power Interface | - | Power Requirements | - | |
| Maximum Accuracy Percentage on Axis | - | Calibration Accuracy on Axis | - | |
| Speed Stability | - | Weight | - | |
| Driver Type | - | |||

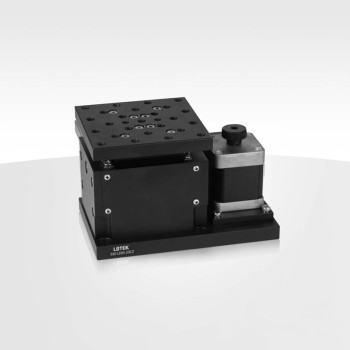

The LBTEK electric vertical displacement stage is driven by a stepper motor and a ball screw drive mechanism, achieving high-precision vertical reciprocating linear motion on cross roller guides. With a 20 mm travel range, it is an ideal solution for vertical movement. The five-phase stepper motor used in the electric vertical displacement stage is stable and reliable, with a maximum speed of 5 mm/s. The controller allows manual adjustment via a knob at the rear of the motor when the power is off.
The LBTEK electric vertical displacement stage is a linear displacement stage driven by a five-phase stepper motor, providing precise and stable height adjustment throughout its entire range of motion. The motor can move a load of up to 5.0 kg on a 90mm × 90mm mounting platform, with minimal pitch and roll deviation and high repeatability. The stage features 25 M6 threaded holes on the surface for mounting optical and mechanical components. The bottom is equipped with four M6 countersunk holes, allowing it to be mounted onto a breadboard, optical platform, or other displacement stages using M6 screws. The displacement stage must be used with an electric displacement stage controller, and LBTEK offers the EM-CS5-x series controllers for user selection.
