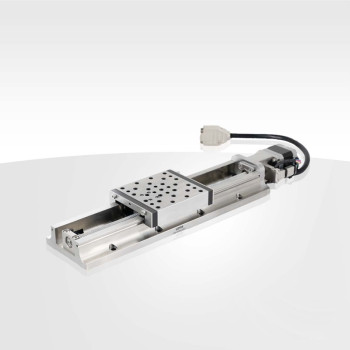

| Coad | 665952 | Type | Motorized Linear Translation Stage | |
| Table Size(mm) | 65.0 x 65.0 | Travel（mm） | 13 | |
| Resolution（μm per microstep） | 0.5 | Motor Type | Five-Phase Stepper Motor | |
| Material | Stainless Steel | Motion Parallelism | 10μm | |
| Motion Straightness | 3μm | Drive Mechanism | Ball Screw | |
| Guide Mechanism | Linear Ball Bearing Guide | Unidirectional Positioning Accuracy | 15μm | |
| Repeatability | ±1μm | Reset Positioning Accuracy | - | |
| Backlash | 3μm | Vertical Load | 2.3kgf | |
| Horizontal Load | 7kgf | Speed | Max：20mm/s | |
| Maximum Acceleration | - | Thread Specification | Spacing: 25mm, M6 Threaded Hole | |
| Surface Treatment | Nickel Plating | Accessories Included | 4 M6 Flat Head Hexagon Socket Screws | |
| Angle Range | - | Power Consumption | - | |
| Minimum Repeatable Motion Increment | - | Minimum Step Size | - | |
| Power Interface | - | Power Requirements | - | |
| Maximum Accuracy Percentage on Axis | - | Calibration Accuracy on Axis | - | |
| Speed Stability | - | Weight | - | |
| Driver Type | - | |||
Traders City price 883.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
