| Code | 665946 | Type | Adjustable Focusing Collimator | |
| Material | 6061-T6 Aluminum Alloy | Surface Treatment | Black Anodizing | |
| Applicable Optical Element Diameter | Ø25.4mm | Weight | 0.19kg | |
| Mounting Hole Specification/Quantity | M4 Thread Hole / 2pieces | Optical Element Locking Method | Hand-tightened Screws | |
| Included Accessories/Quantity | 3.0mm Hex Wrench / 1piece, M4×30 Hex Head Screws / 2 ieces |
Install Ø25.4 mm Optical Element
Adjustable Optical Element Position
Optical Element Fixed with Hand-tightened Screws

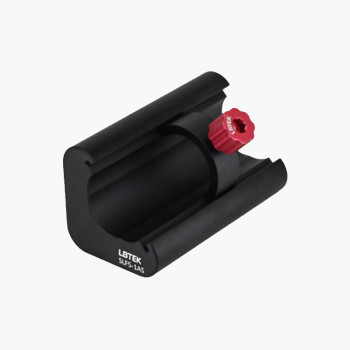

The LBTEK Positioner Optical Element Mounting Bracket is compatible with the single-mode fiber positioner and allows direct installation of Ø25.4 mm optical elements onto the SLF5. It features two M4 threaded holes along the optical axis direction for connection to the fiber positioner, and two orthogonally distributed M4 threaded holes for left and right-hand assembly installation. The three-point fixed design between the base and the optical element allows for the adjustment of the optical element’s position by loosening or tightening the hand-tightened screws. The purchase includes one 3.0 mm hex wrench and two M4×30 hex head screws.
