| Code | 665944 | Type | Adjustable Focusing Collimator | |
| Material | 6061-T6 Aluminum Alloy | Surface Treatment | Black Anodizing | |
| Adjuster Specification/Quantity | M6 x 0.25 / 5 pieces | Optical Axis Center Height | 25.4mm | |
| Weight | 0.63kg | Pitch/Yaw Angle Precision | 0.75°/turn | |
| Mounting Hole Specification/Quantity | M4 Thread Hole / 4pieces | X and Y Axis Fine Adjustment Sensitivity | 0.78μm/turn | |
| Included Wrench/Quantity | 2.0mm / 1piece | Z Axis Travel Range | 3mm | |
| X and Y Axis Travel Range | 3mm | X and Y Axis Travel Precision | 0.25mm/turn | |
| Z Axis Travel Precision | 0.25mm/turn | Adjustable Pitch/Yaw Angle Range | 5° |
Displacement Axes: X, Y, Z, θx, θy
Pitch/Yaw Angle Precision: 0.75°/turn
Adjustable Pitch/Yaw Angle Range: 5°
X, Y Axis Travel Range: 3 mm
X, Y Axis Fine Adjustment Sensitivity: 0.78 μm/turn
Z Axis Travel Range: 3 mm

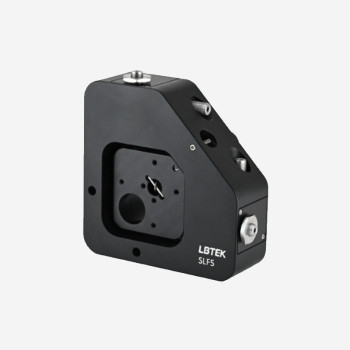

Product Description: The LBTEK Five-Axis Single-Mode Fiber Positioner allows for pitch/yaw and XYZ axis adjustment, making it suitable for single-mode fiber applications. The fiber end is equipped with independent pitch/yaw control, controlled by three adjustment screws, providing 0.75°/turn adjustment precision. Each adjuster comes with a planetary gear, and the central knob can drive all three adjusters simultaneously, enabling independent Z-axis movement. When one screw is fixed using a 2 mm hex wrench, pitch/yaw motion can be performed. The two adjustment screws on the side, perpendicular to each other, enable X-Y alignment. A pair of X-Y fine adjustment screws is included on the slanted surface, which, using a cam mechanism, rotates the coarse adjustment screw to achieve 0.78 μm/turn sensitivity. Multiple mounting holes are provided for accessory installation, offering maximum flexibility. The base has four M4 mounting holes, allowing the connector to be installed on the single-mode fiber positioner for both left and right-hand installation.
