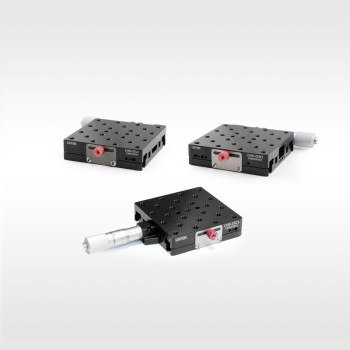

| Coad | 665920 | Type | 25 mm Travel Manual Linear Translation Stage | |
| Table Size(mm) | 90.0 x 90.0 | Travel(°) | - | |
| Travel（mm） | 25.00 | Axes | 2 | |
| Material | Aluminum Alloy 6061-T6 | Rotation Center Height | - | |
| Resolution | - | Displacement Stage Height | 46.4mm | |
| Center Threaded Hole Specifications | - | Platform Mounting Holes | M6 | |
| Thread Hole Spacing | 25mm | Bottom Positioning Hole Type | M6 | |
| Maximum Speed | - | Backlash | - | |
| Guide Mechanism | - | Drive Mechanism | - | |
| Horizontal Load | 42kg | Vertical Load | - | |
| Motion Parallelism | - | Motion Straightness | ≤3μm | |
| Motion Concentricity | - | Weight | - | |
| Multi-Axis Assembly Method | - | Micrometer Head Minimum Scale | 10μm | |
| Motor Type | - | Surface Treatment | Black Anodizing after Grinding | |
| Repeatability | - | Unidirectional Positioning Accuracy | - | |
| Accessories Included | - | Driver Position | Direct Drive at the End | |
| XY Orthogonality | - | Verticality of Z-Axis Motion | - | |
| Rotation Angle | - | End Runout | - | |
| Supplement | - | |||
Traders City price 668.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
